ProjectionPlane

This projection method is based on providing three corner points that are used to construct a virtual image plane. The units of the positions are all relative to the user’s position so are ultimately arbitrary.

Parameters

type#stringrequireddefault ProjectionPlane

Defines the type of this projection.

lowerleft#vec3required

The position of the lower left corner of the projection plane relative to the User's position. The units for these values are arbitrary.

upperleft#vec3required

The position of the upper left corner of the projection plane relative to the User's position. The units for these values are arbitrary.

upperright#vec3required

The position of the upper right corner of the projection plane relative to the User's position. The units for these values are arbitrary.

Examples

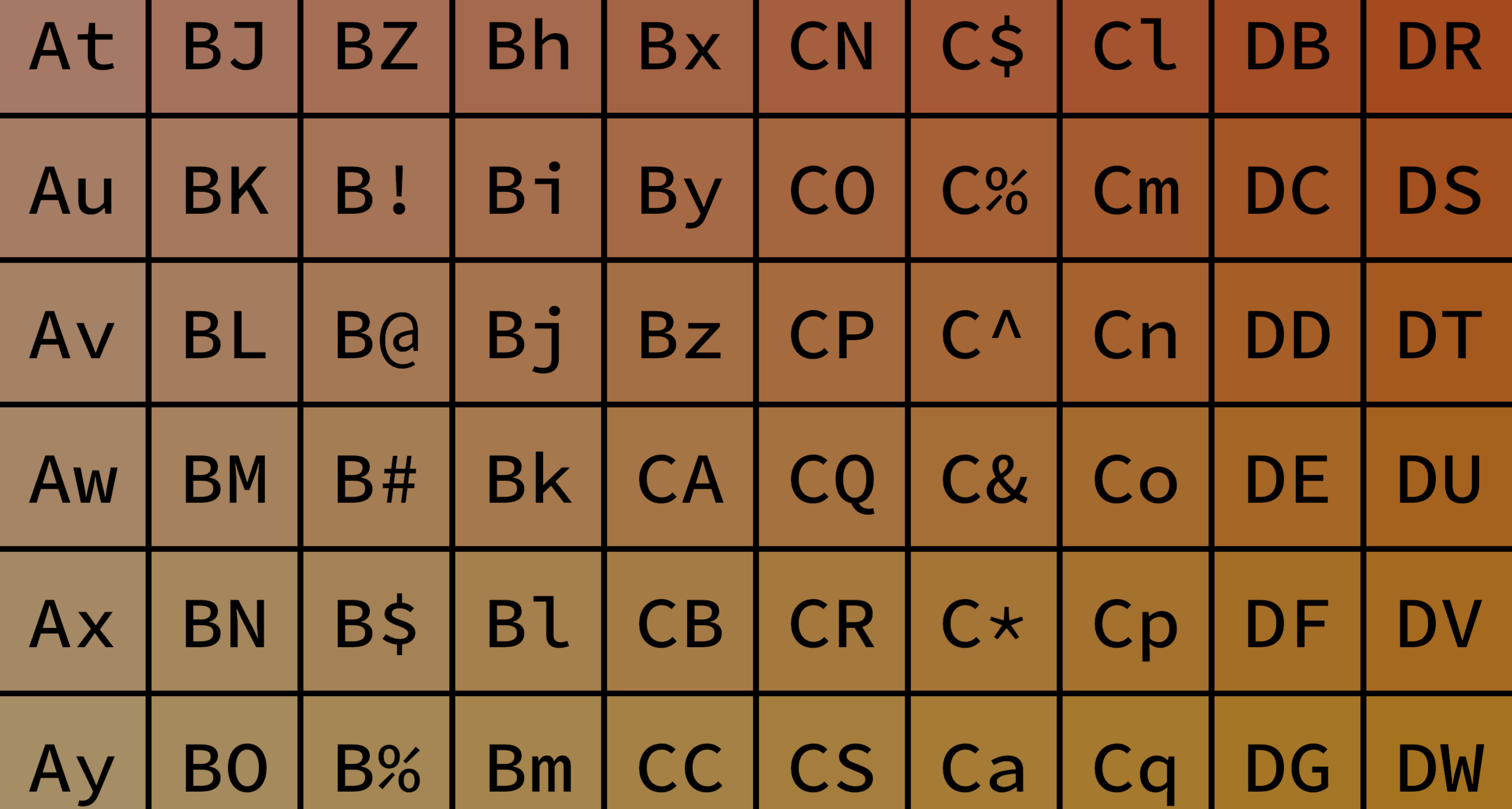

↓projectionplane.json

{
  "version": 1,
  "masteraddress": "localhost",
  "nodes": [
    {
      "address": "localhost",
      "port": 20400,
      "windows": [
        {
          "pos": { "x": 50, "y": 50 },
          "size": { "x": 1280, "y": 720 },
          "viewports": [
            {
              "projection": {
                "type": "ProjectionPlane",
                "lowerleft": { "x": -1.778, "y": -1.0, "z": 0.0 },
                "upperleft": { "x": -1.778, "y": 1.0, "z": 0.0 },
                "upperright": { "x": 1.778, "y": 1.0, "z": 0.0 }
              }
            }
          ]
        }
      ]
    }
  ],
  "users": [
    {
      "eyeseparation": 0.06,
      "pos": { "x": 0, "y": 0, "z": 4.0 }
    }
  ]
}
