Fisheye

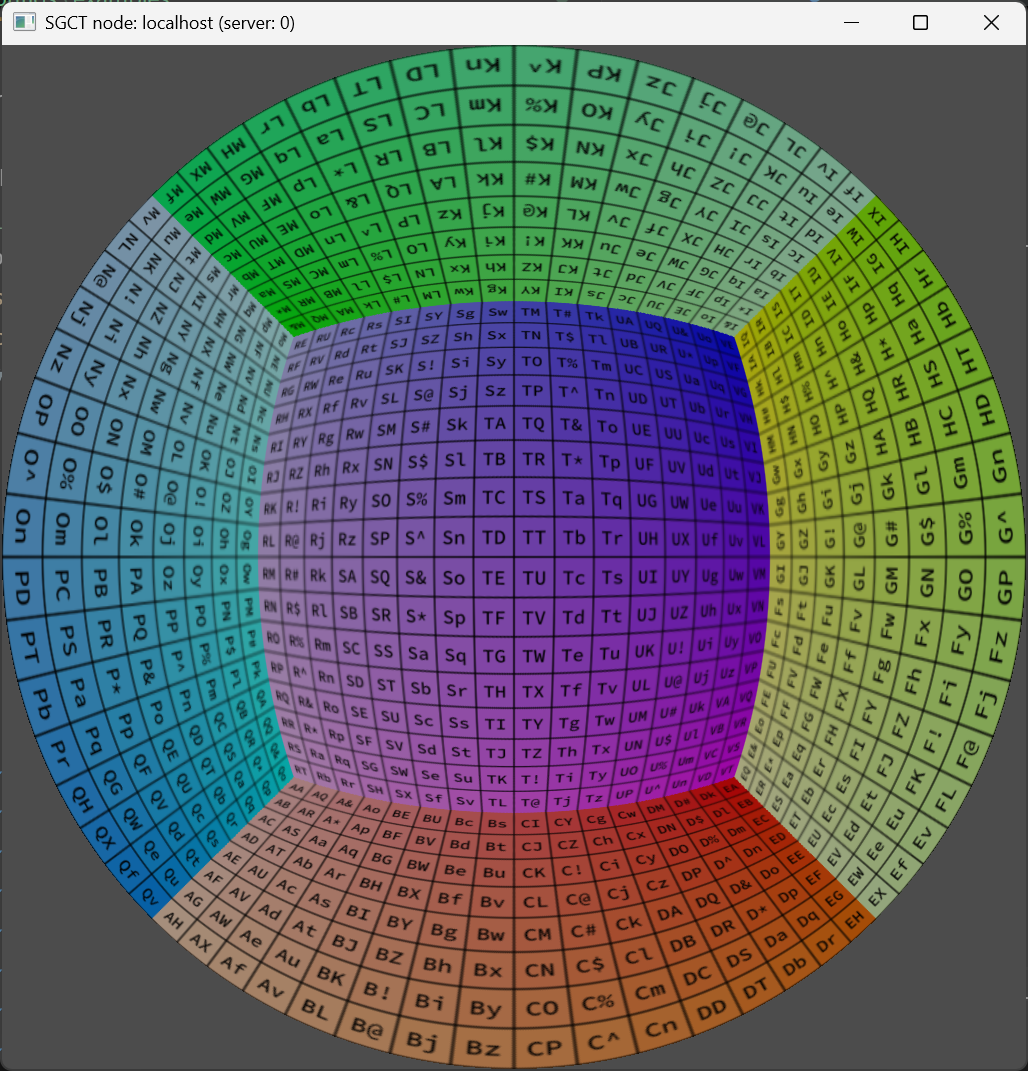

This example is a fisheye rendering which demonstrates a more sophisticated rendering setup, which internally consists of many projections that are automatically assembled by SGCT into a single circular fisheye output.

↓fisheye.json

{
  "version": 1,
  "masteraddress": "localhost",
  "nodes": [
    {
      "address": "localhost",
      "port": 20400,
      "windows": [
        {
          "size": { "x": 1024, "y": 1024 },
          "viewports": [
            {
              "projection": {
                "type": "FisheyeProjection",
                "fov": 180.0
              }
            }
          ]
        }
      ]
    }
  ],
  "users": [
    {
      "eyeseparation": 0.06,
      "pos": { "x": 0.0, "y": 0.0, "z": 0.0 }
    }
  ]
}
