High-resolution

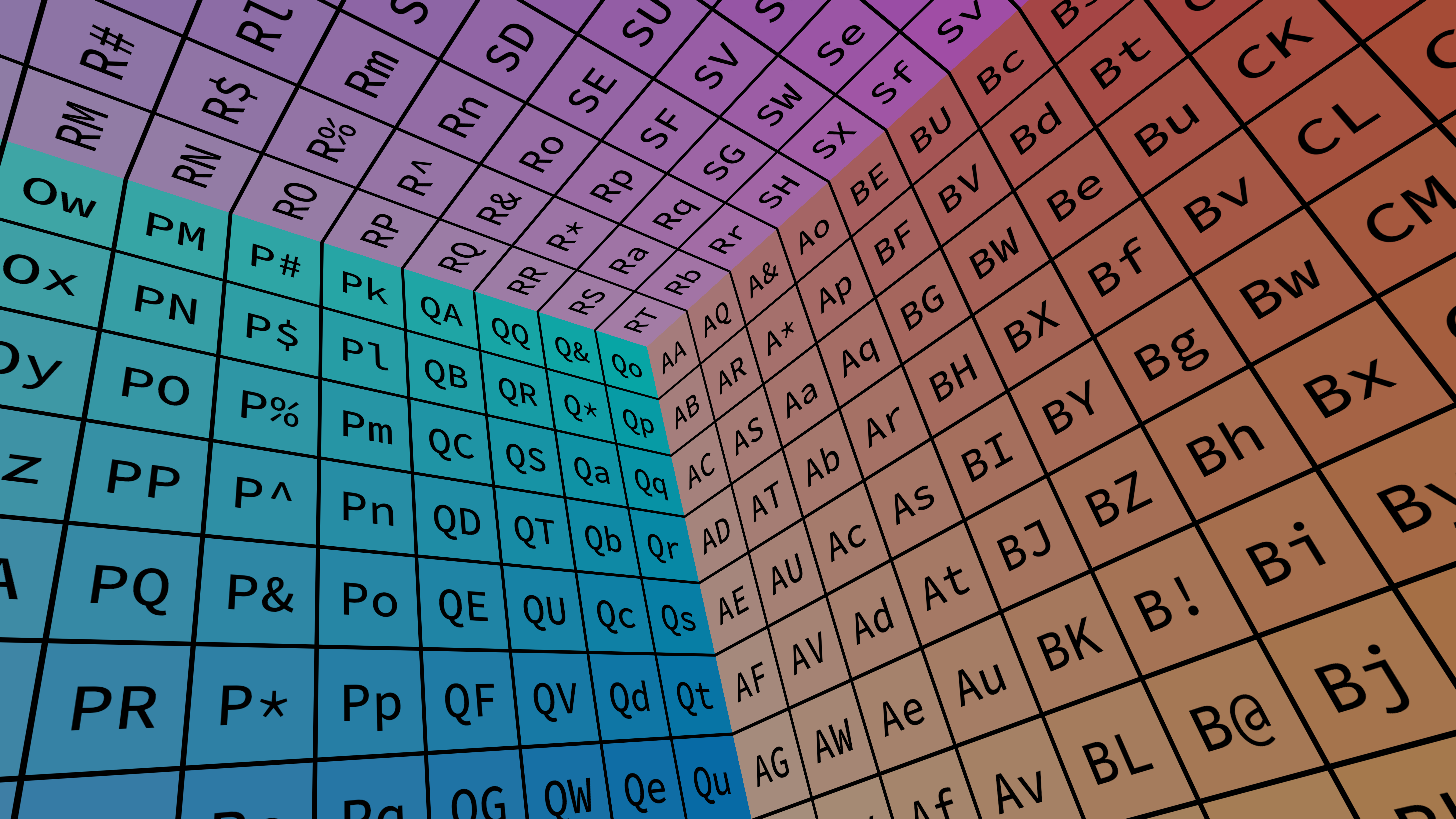

This example creates a window of full HD size (1920x1080) but the rendering is actually happening at 8K resolution (7680x4320). While this would not be useful under normal circumstances, native screenshots that are taking from this configuration file will be at the actual rendering resolution even if the screen would not support such high resolutions normally.

↓highres.json

{
  "version": 1,
  "masteraddress": "localhost",
  "nodes": [
    {
      "address": "localhost",
      "port": 20400,
      "windows": [
        {
          "size": { "x": 1920, "y": 1080 },
          "res": { "x": 7680, "y": 4320 },
          "viewports": [
            {
              "projection": {
                "type": "PlanarProjection",
                "fov": {
                  "hfov": 80.0,
                  "vfov": 50.534015846724
                },
                "orientation": {
                  "yaw": -40,
                  "pitch": 30,
                  "roll": 15
                }
              }
            }
          ]
        }
      ]
    }
  ],
  "users": [
    {
      "eyeseparation": 0.065,
      "pos": { "x": 0.0, "y": 0.0, "z": 0.0 }
    }
  ]
}
