Single Node

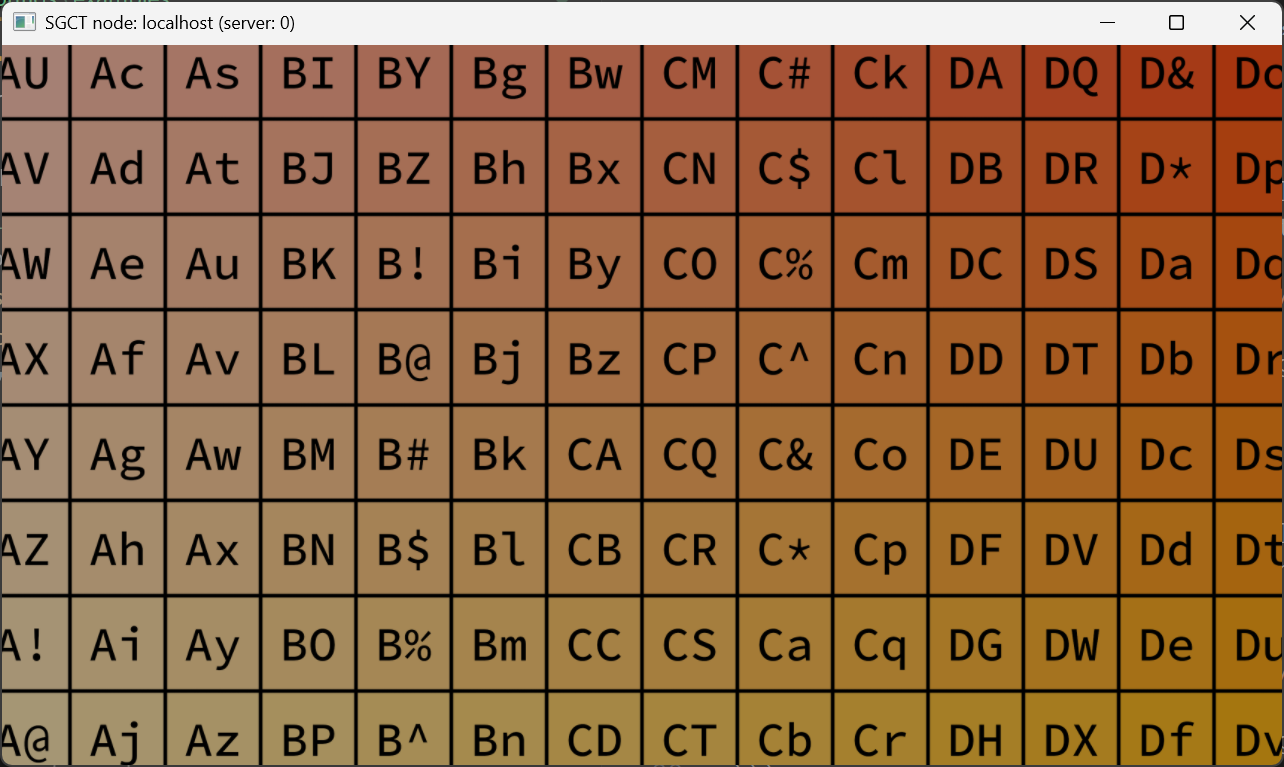

Here is a minimal example of a single node, single window configuration. This file creates a single node on localhost with a single window that has a size of 1280 by 720 pixels with a camera of 80 degrees horizontal field-of-view and approximately 50.5 degrees vertical field of view.

↓single.json

{
  "version": 1,
  "masteraddress": "localhost",
  "nodes": [
    {
      "address": "localhost",
      "port": 20400,
      "windows": [
        {
          "size": { "x": 1280, "y": 720 },
          "viewports": [
            {
              "projection": {
                "type": "PlanarProjection",
                "fov": {
                  "hfov": 80.0,
                  "vfov": 50.534015846724
                }
              }
            }
          ]
        }
      ]
    }
  ],
  "users": [
    {
      "eyeseparation": 0.065,
      "pos": { "x": 0.0, "y": 0.0, "z": 0.0 }
    }
  ]
}
