Two Windows

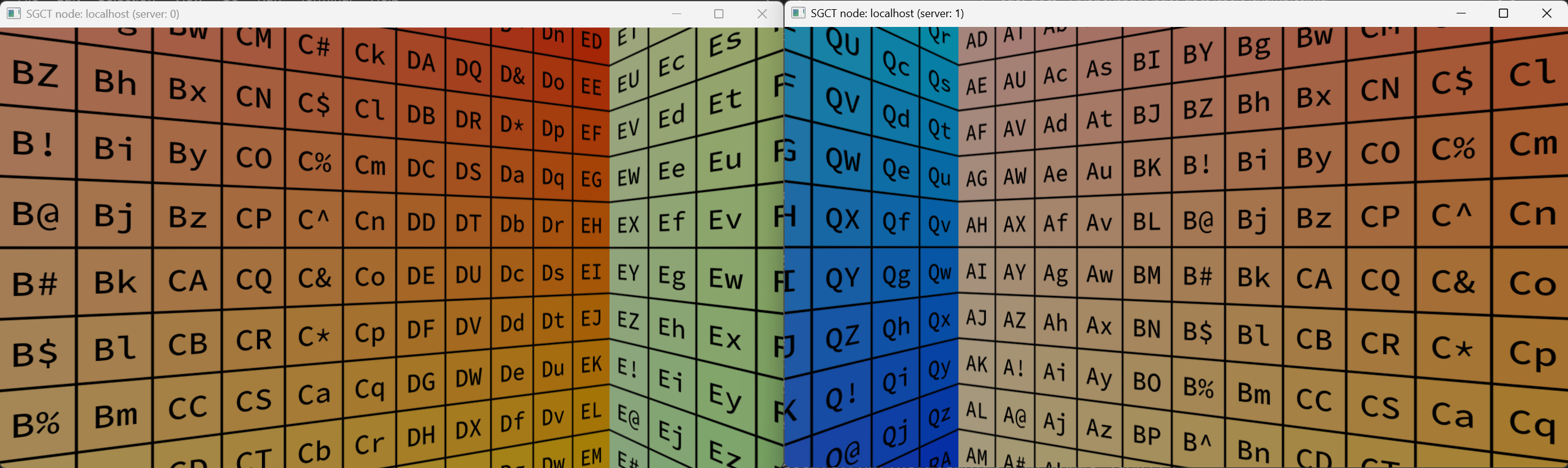

This example is a variant on the Two Nodes example above. Instead of starting the application twice with one window each, this configuration file is using one instance that renders into two windows instead.

↓two-windows.json

{
  "version": 1,
  "masteraddress": "localhost",
  "nodes": [
    {
      "address": "localhost",
      "port": 20400,
      "windows": [
        {
          "size": { "x": 1280, "y": 720 },
          "viewports": [
            {
              "projection": {
                "type": "PlanarProjection",
                "fov": {
                  "hfov": 80.0,
                  "vfov": 50.534015846724
                },
                "orientation": { "yaw": 20.0, "pitch": 0.0, "roll": 0.0 }
              }
            }
          ]
        },
        {
          "size": { "x": 1280, "y": 720 },
          "viewports": [
            {
              "projection": {
                "type": "PlanarProjection",
                "fov": {
                  "hfov": 80.0,
                  "vfov": 50.534015846724
                },
                "orientation": { "yaw": -20.0, "pitch": 0.0, "roll": 0.0 }
              }
            }
          ]
        }
      ]
    }
  ],
  "users": [
    {
      "eyeseparation": 0.065,
      "pos": { "x": 0.0, "y": 0.0, "z": 0.0 }
    }
  ]
}
